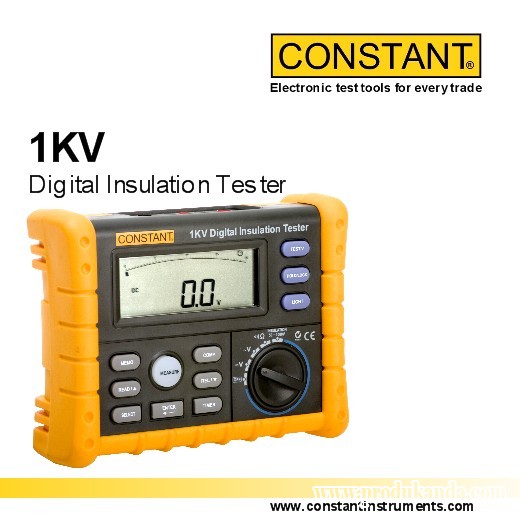

CONSTANT 1KV Digital Insulation Tester
Specification
Insulation Test Voltages : 50, 100, 250, 500, 1000V
Insulation Source Voltages : +20%, -0%
Insulation Short Circuits Test Current : 1,8mA nominal
Insulation Auto Discharge : discharge time < 2 seconds for C = 1µF or less
Insulation Live Circuit Detection : inhibit test if terminal voltage >20V prior to initialization of test
Insulation Auto Discharge : discharge time < 2 seconds for C = 1µF or less
Insulation Live Circuit Detection : inhibit test if terminal voltage >20V prior to initialization of test
Insulation Maximum Capacitive load : up to 1µF load
Storage Temperature : -40 ~ 60°C
Operating Temperature : 0 ~ 40°C
Relative Humidity : 40 ~ 75% (40 ~ 60% when insulation test > 1GΩ
Relative Humidity : 40 ~ 75% (40 ~ 60% when insulation test > 1GΩ
Size : 180 x 140 x 65nm
Weight : ±900gr
