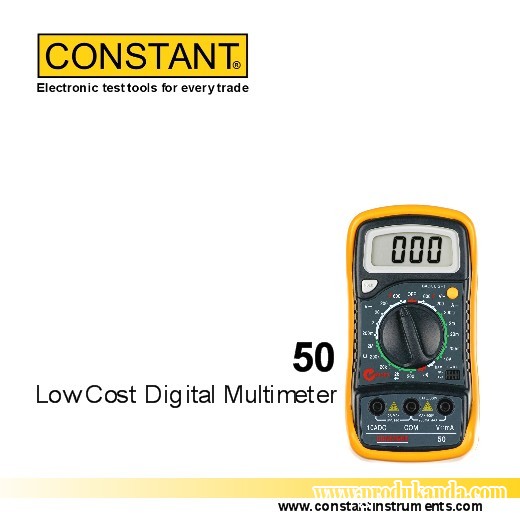

CONSTANT 50 Low Cost Digital Multimeter
Features
· Holster For Protection
· Low Battery Indication
· Back Light
Specification
AC Voltage : 200/600V
DC Current : 200µ/2m/20mA, 200mA, 10A
DC Voltage : 200m/2/20/200V, 600V
Resistance : 200Ω, 2k/20k/200kΩ, 2MΩ
Diode : Read approximately forward voltage drop of the diode
hFE : Read approximately hFE value of PNP/NPN transistor
Continuity : If continuity exists < 1.5kΩ, built in buzzer will sound
Display : 3½ digits, 1999 counts
Battery / Fuse : 9V/F 200mA/250V
Size / Weight : H138 x W69 x D31mm / Approx. 170g
Standard Accessories : Test Leads, Holster, Battery, Manual
