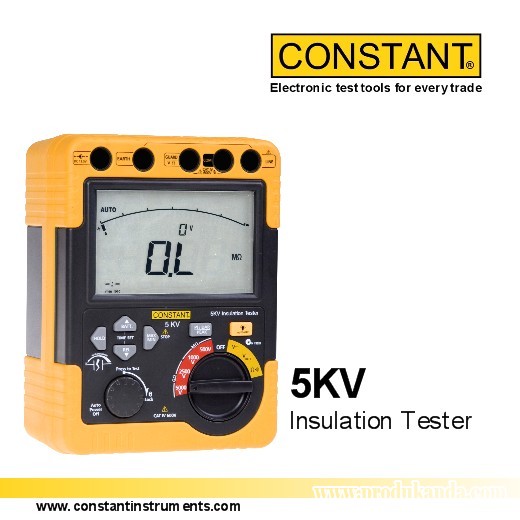

CONSTANT 5KV Digital Insulation Tester
Harga :
Rp. 6.200.000 / Unit
Pembelian Minimal :
1 Unit
Pengiriman :
1 hari sejak pembayaran
Update Terakhir :
19-06-2014 04:49
Dapatkan Spesifikasi Harga
CONSTANT 5KV Digital Insulation Tester Produk Terbaik dari
The Digital Store GPS Survey dan Industri
Detail Produk
Features
- Wide Range Measurement (Up To 5kV and 60GΩ)
- Large 6000 Counts LCD Display With Bargraph
- Auto Range And Timer Measurement Function
- Indication Of Output Voltage & Discharge Voltage
- Auto Power Off & Battery Check Function
- Max/Min, Peak, Relative Value Reading
- Data Hold Function
- CAT IV 600V Safety Standard
| Function |
Insulation Resistance |
Voltage |
Resistance |
| Range |
500V |
1000V |
2500V |
5000V |
AC/DCV |
|
Measuring Range
(Auto Ranging) |
0~6.000MΩ |
0~6.000MΩ |
0~60.00MΩ |
0~60.00MΩ |
0~600.0V
(50-1kHz) |
0~600.0Ω |
| 6~60.00MΩ |
6~60.00MΩ |
60~600.0MΩ |
60~600.0MΩ |
600~6000Ω
|
| 60~600.0MΩ |
60~600.0MΩ |
0.6~6.000GΩ |
0.6~6.000GΩ |
| 600~6000MΩ |
600~6000MΩ |
6~60.00GΩ |
6~60.00GΩ |
| Accuracy |
±5%rdg ±3dgt; ±20%(>6GΩ or more) |
±1.5%rdg ± 5dgt |
±1.5%rdg ± 5dgt |
| Short Circuit Current |
1.3mA approx |
- |
Rated test Current
(At Load Resistance) |
1mA-1.2mA
0.5MΩ |
1mA-1.2mA
1MΩ |
1mA-1.2mA
2.5MΩ |
1mA-1.2mA
5mΩ |
- |
| Opern circuit Voltage |
500VDC/
+20%-0% |
1000VDC/
+20%-0% |
2500VDC/
+20%-0% |
5000VDC/
+20%-0% |
- |
| Continuity Check |
Buzzer sounds at 50Ω |
| Display |
6000 Counts |
| Current Consumption |
About 1000mA (During measurement) |
25mA approx. |
| Withstand Voltage |
5320V AC for 5 seconds |
| Safety Standard |
IEC 61010-1 CAT IV 600V Pollution Degree 2 |
| Power Supply |
DC12V : R14 x 8 |
| Dimensions |
198 (L) x 148 (W) x 86 (D) mm |
| Weight |
1438g approx. |
| Accessories |
Test leads, Instruction Manual and 120/250V AC adaptor |
|
