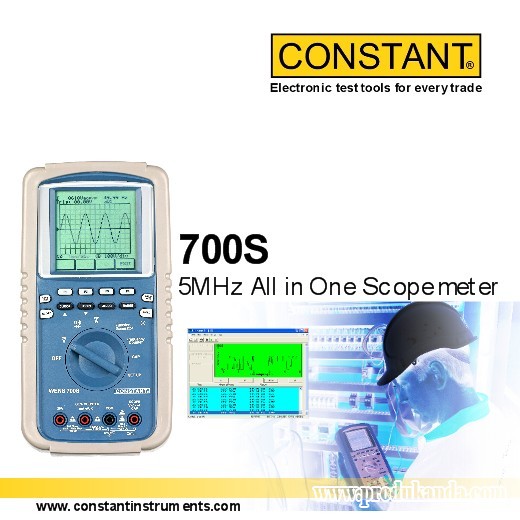

CONSTANT 700S 5MHz All In One ScopeMeter

Harga :

Rp. 6.950.000 / Unit

Merk :

Constant

Pembelian Minimal :

1 Unit

Pengiriman :

1 hari sejak pembayaran

Lokasi :

Dilihat :

34 Kali

Update Terakhir :

16-06-2014 04:05

Dapatkan Spesifikasi Harga CONSTANT 700S 5MHz All In One ScopeMeter Produk Terbaik dari The Digital Store GPS Survey dan Industri

Detail Produk

CONSTANT 700S 5MHz All In One ScopeMeter

Features

· Auto setting digital storage scope 5 MHz

· Frequency counter up to 1.3 GHz

· Function generator up to 5Mhz

· Logic analyzer

· Display 160 by 160 pixel graphic LCD (63mm x 63 mm)

· Measurement rate: 4 times/second for digital, 7 times/second for bar-graph

· Direct print capability through recommended thermal printer

· Auto power-off after 30 minutes, set up mode (enable/disable)

· RS 232 computer interface: 1200, 2400, 4800, 9600 bps baud rates, 8 bit data, 1 stop bit, none parity bit

· Store up to 15 screens either text or graph

· HELP key

· Automatic Testing System & Memory

· 4 directions cursor

· Set up for printer, parity, beeper, back light, baud rate, dBm reference, sleep mode

· User manual in SET UP

· Frequency counter displays hold mode and rpm

· Display ”OVER” with beeper sound for over range indication

Specification

Digital MultiMeter

AC Current Range : 40mA - 20A

AC Voltage Range : 400mV - 700V

DC Current Range : 40mA - 20A

DC Voltage Range : 400mV - 1000V
Resistance Range : 400 Ω - 40M Ω

Capacitance Range : 40n - 100µF
Diode Test : Resolution 1mV, Accuracy ±(2.0% rdg ± 5 dgts), Max 5V Open Circuit
Continuity : If continuity exists ≤ 60Ω, built in buzzer will sound

Display : 3¾ digits, 3999 counts

Digital Storage Oscilloscope

Rising Time : Less than 15nS

Input Impedance : 1MΩ

Number of Channel : 1 channel

Sensitivity : 10mV/div - 200V/div (14 divisions)

Bandwith : DC to 5MHz

Sample Rate : 25 x 106 samples/s

Input Protection : 600Vpp
Horizontal : Sweep : 125ns ~ 2s/div (23 divisions), Mode : Auto

Frequency Counter

Range : 5Hz ~ 1.3GHz

Display : 8 digits

Period Measurement : 5Hz ~ 100MHz

Internal Gate Time : 0.1s, 1s, 10s
Input Measurement : CH A : 5Hz ~ 40MHz ; CH B : 40MHz ~ 1.3GHz
Min/Max/Avg : Records min, max, and average; History graph display

Hold : Captures current reading
Peak Hold : Records peak max, min; History graph display

Function Generator

Output : Sine, triangle, square wave

Range : 40Hz ~ 50MHz (6 range)

Display : 3 digits

Output Impedance : 600Ω

Amplitude : 2 ~ 10Vpp

Duty Cycle : 25% ~ 75%
Display frequency, period, duty cycle, and amplitude simultaneous in one screen

Logic Analyzer

Input Channel : 1 channel

Input Impedance : 1MΩ

Protection Level : 50Vpp Max
Horizontal : Sweep time : 125ns - 2s/div (23 divisions), Mode : Auto

General Spesifications

Power : 6 AA cells (9V Alkaline) or 6 A (7.2V) Ni-Cd battery or 2 rechargeable Ni-Cd battery pack or AC Adapter with internal charger

Size / Weight : H220 x W107 x D55mm / Approx. 800g

Standard Accessories : Alligator Clip Set, Test Leads, Holster, AC/DC Power Adaptor with Internal Charger, Ni-Cd Battery Pack, Scope Probe (1:1), BNC/Banana Adaptor, RS232 Interface Cable with Software, Manual, Constant Certificate.

Optional Accessories : AC Current Adapter, Humidity Adapter, Temperature Adapter, Thermal Printer, Deluxe Carrying Bag, Certificated of Calibration.
