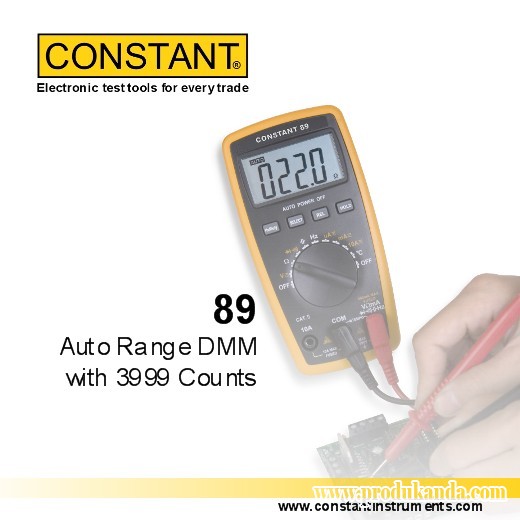

CONSTANT 89 Auto Range Digital Multimeter
Features
· Autorange
· Compact And Easy To Use
· 3999 Counts
· Frequency, duty cycle, capacitance, and temperature measurement
Specification
DC Voltage : 400m - 600V
AC Voltage : 4 - 600V
DC Current : 400µ - 10A
AC Current : 400µ - 10A
Resistance : 400Ω - 40MΩ
Diode Test : Read approximately forward voltage drop of the diode
Continuity : Built-in buzzer will sound if resistance is less than 50Ω
Capacity : 4nF - 100µF
Diode Test : Read approximately forward voltage drop of the diode
Continuity : Built-in buzzer will sound if resistance is less than 50Ω
Capacity : 4nF - 100µF
Frequency : 1 - 30MHz
Temperature : (-20 ~ 1000)°C
Duty Cycle : 0.1 ~ 99.9%
Display : LCD 3999 counts
Indication : over range, low battery
Power : 2 x 1.5V (AAA size)
Size : H145 x W74 x D36mm
Weight : approx. 190g (including batteries)
Standard Accessories : instruction manual, holster, soft pouch, test leads,
K-Thermocouple, batteries, warranty card
