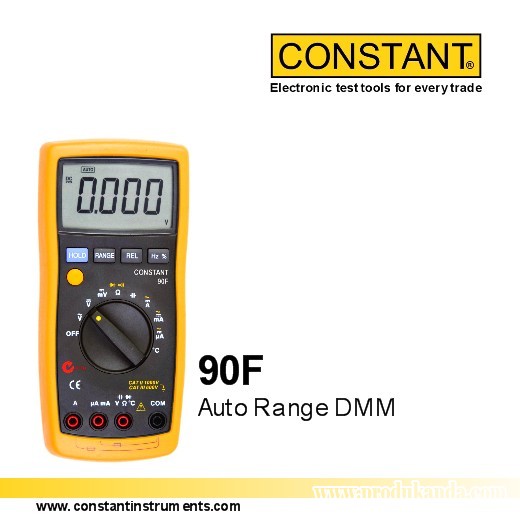

CONSTANT 90F Auto Range Digital Multimeter
Features
• Auto/Manual Ranging
• Sleep Mode To Save Battery
• Varistor And PTC Protection
• Secondary Injection Moulding Body
Specification
AC Current : 400µ/4m/40m/400m/4/10A
AC Voltage : 400mV - 1000V
DC Current : 400µ/4m/40m/400m/4/10A
DC Voltage : 400mV - 1000V
Input Impedance : >5MΩ (ACV) and >10MΩ (DCV)
Resistance : 400.0Ω - 40.00MΩ
Capacitance : 50nF(<10nF) 50nF(≥10nF) 500n/5µ/50µ/100µF
Frequency : 50.00/500.0/5.000k/50k/100kHz
Temperature : -55 - 1000°C
Diode Test : Display forward voltage drop of the diode
Continuity : If continuity exists (≤ 75Ω), built in buzzer will sound
Continuity : If continuity exists (≤ 75Ω), built in buzzer will sound
Display : 3¾ digits
Indication : Low battery, over range, negative polarity
Battery / Fuse : 3 x 1.5V (AAA size)
Size / Weight : 185 x 87 x 53mm / ±360g (including battery)
Standard Accessories : Test Leads, batteries, K type thermocouple, instruction manual, warranty card, certificate of product conformance
