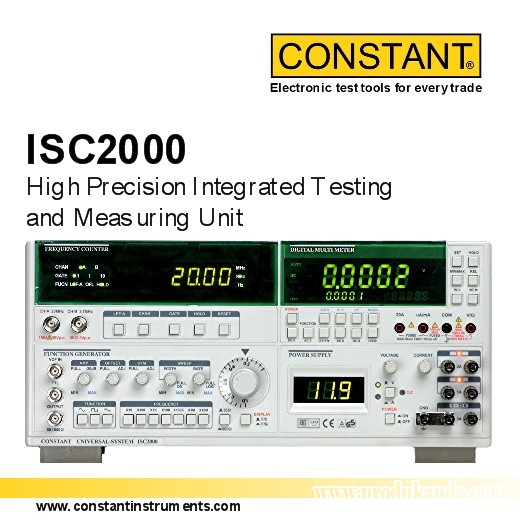

CONSTANT ISC2000 High Precision Integrated and Measuring Unit

•      Integrated System Calibrator With 40000 Counts

•      True RMS ±0.03% High Accuracy (DCV) Bench Top Testing And Calibrating Unit, High Accuracy Of The DMM Module"

•      Ideally Suited For Calibrating Handheld Analog/Digital Multimeters or Other Electrical Voltage/Current Panel Meters

•      Widely Used In A Workshop As A Repair or Service Station For Various Electronics Equipments or Field Instruments

•      With Its Integrated Adjustable And Fixed Power Supply, Frequency Counter And Function Generator Module, The ISC2000 Is Ideally Suited For Students In Electronic Workshop Environments or Electronic Related Research Projects

Digital Multimeter

Frequency Counter

•      Channel A : 1Hz ~ 20MHz

•      LED Display depending on gate time and input signal at least 7 digits are display per each second of gate time

•      Channel B : 20MHz ~ 2.7GHz

•      Channel A : 40mV RMS Sine Wave for 100mVpp

•      Channel B : 40mV RMS Sine wave for 20MHz ~ 1.3GHz or 40mV RMS Sine wave for 1.3MHz ~ 2.7GHz.

•      Channel A : 35Vpp

•      Channel B : 3Vpp

•      Channel A : 1MΩ

•      Channel B : 50Ω

Selectable Time Base : Channel A and B are switch-selectable

Function Generator

Wave Forms : Sine, square, triangle, skewed sine, ramp, pulse, TTL level square
Frequency : 1 ~ 10MHz
VCF Voltage Level : 0 to 10 VDC
Output Impedance : Selectable 50Ω ±10%, 600Ω ±10%

•      2Vpp ~ 20Vpp (open load)

•      1Vpp ~ 10Vpp (50Ω load)

•      Symmetry less than 1% (at 1kHz)

•      Rise and fall time less than 150nS (at 1kHz)

Triangle Wave : Linearity less than 1% (up to 100kHz), 50% (100k ~ 200MHz)

•      Rise and fall time less than 30nS (at 1kHz)

•      Output level > 3V

Power Supply

General Specifications
