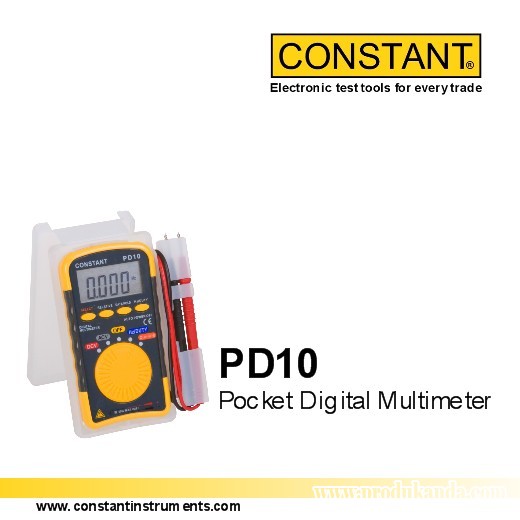

CONSTANT PD10 Pocket Digital Multimeter
Features
· Pocket size in Hard Case or Soft Case
· Relative measurement
· Battery life approx. 200 hours
Specification
AC Current : -
AC Voltage : 4 - 500V
DC Current : -
DC Voltage : 400mV - 500V
Input Impedance : 10MΩ (AC and DC Voltage)
Resistance : 400 - 40MΩ
Capacitance : 4nF - 200µF
Frequency : 9.999/99.99/999.9/9.999k/99.99kHz
Duty Cycle : 0.1 – 99%
Diode : Read approximately forward voltage drop of the diode
Continuity : If continuity exists ≤ 60Ω, built in buzzer will sound
Diode : Read approximately forward voltage drop of the diode
Continuity : If continuity exists ≤ 60Ω, built in buzzer will sound
Display : 3¾ digits, 4000 counts
Battery : 3V (CR 2032)
Size / Weight : H108 x W56 x D11.5mm / Approx. 50g
Standard Accessories : Test Leads, Hard Case / Soft Case, Battery, Manual
Size / Weight : H108 x W56 x D11.5mm / Approx. 50g
Standard Accessories : Test Leads, Hard Case / Soft Case, Battery, Manual
