Fluke 2042 Cable Locator
THE FLUKE CABLE LOCATOR IS A PORTABLE MEASUREMENT INSTRUMENT THAT CAN BE USED TO DETECT or TRACE CONDUCTORS
The Fluke 2042 is a professional general purpose cable locator for all applications (live or dead cables) without additional instruments.
The Fluke 2042 is a professional general purpose cable locator. It is ideal for tracing cables in walls and underground, locating fuses/breakers on final circuits and locating interruptions and short-circuits in cables and electrical floor heating systems.

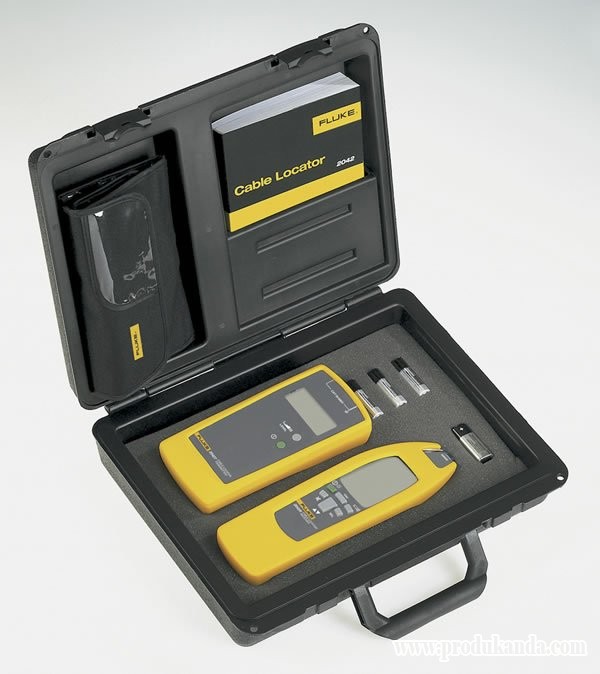

The 2042 can also be used for tracing metallic water and heating pipes. The unit is supplied as a complete kit comprising of a transmitter and receiver in a purpose-made carry case. The receiver also incorporates a torch function for working in dimly lit locations.
Fluke 2042 Cable Locator Features
For all applications (live or dead cables.
Includes a transmitter and a receiver.
Proven digitally coded sender signal.
Torch function for dark areas.
Additional transmitters are available.
Voltage Measurement Range: 12V, 50V, 120V, 230V, 400V.
Tracing depth cable location: Receiver: 0 - 2.5m wall / underground cables.
Main voltage detection: Receiver: 0 - 0.4m .
Transmitter Dimensions: 190 x 85 x 50mm.
Receiver Dimensions: 250 x 65 x 45mm.
Locator Weight: 0.45kg.
Receiver Weight: 0.36kg.
TL27 Heavy Duty Test Lead Set (2) TP74 Lantern Tip Test Probe Set, AC285 Alligator Clip Set, Soft carrying case, Hard case & Fluke 2042 operating instructions.
