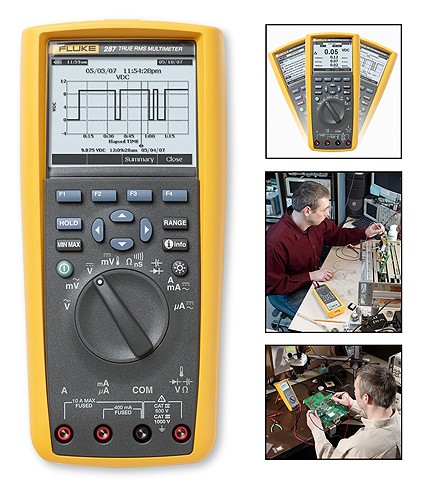

Fluke 287 Electronics Logging Multimeter
FLUKE 287 TRUE-RMS MULTIMETER WITH TRENDCAPTURE QUICKLY DOCUMENTS DESIGN PERFORMANCE AND GRAPHICALLY DISPLAYS WHAT HAPPENED
The Fluke 287 packs more accuracy and convenience into a handheld multimeter than ever before.
The Fluke 287 packs more accuracy and convenience into a handheld multimeter than ever before, putting more problem solving power in your hands. It is the ultimate handheld tool for demanding applications that require high-precision.
Use the Fluke 287 to quickly characterise and document design performance. TrendCapture allows the engineer to graphically view logged readings after the recording session right on the DMM display. It's unique logging and graphing capabilities mean you no longer need to download logged readings to a PC to detect a trend.
Fluke 287 Electronics Logging Multimeter Features
Logging function with TrendCapture.
Multiple logging sessions possible without download.
Large 50,000 count, 1/4 VGA display with white backlight.
Voltage Ranges: 50mV,500mV, 5V, 50V, 500V, 1000V.
Current Ranges: 500µA, 5000µA, 50mA, 400mA, 5A, 10A.
Resistance Ranges: 500Ω, 5kΩ, 50kΩ, 500kΩ, 5MΩ, 50MΩ, 500MΩ.
Frequency: 99.999Hz, 999.99Hz, 9.9999kHz, 99.999kHz, 999.99kHz.
Overvoltage category: CAT III 1000 V / CAT IV 600 V safety rated.
Real Time Clock – for automatic time stamping of saved readings.
100 kHz ac bandwidth.
On board help screens for measurement functions.
Saved measurements allow you to name and recall measurements made in the field.
Multi-lingual interface.
Dimensions: (H x W x L) 22.2 x 10.2 x 6cm.
Weight: 870.9g (28 oz).
Fluke 287 Manual, batteries, TL71 Silicone Test Leads, Probe Holder, two AC72 Alligator Clips.
