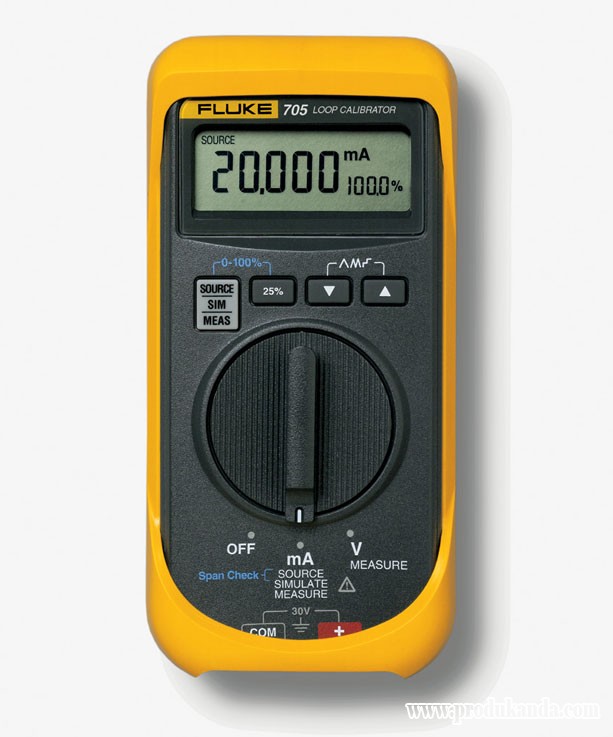

Fluke 705 Loop Calibrator

A SOURCE AND MEASUREMENT TOOL FOR 0 TO 20mA or 4 TO 20mA CURRENT LOOP TESTING AND FOR DC VOLTAGE FROM 0 TO 28V

The Fluke 705 is a feature-rich solution to loop calibration, maintenance and repair offers: A large display and simple, pushbutton interface for ease of use.

Fluke 705 Loop Calibrator Features

    mA sourcing, simulation and measurement.

    0.02% accuracy and 0.001 mA resolution.

    Simultaneous mA and % of span display.

    Selectable slow ramp, fast ramp, and step function.

    24 V Loop supply with mA measure.

    0 - 28 VDC measurement to check Loop Voltage.

    0 - 20 mA or 4 - 20 mA default start up modes.

    Easy battery exchange without opening the case.

    Dimensions: 152 x 70 x 41mm.

C10 protective yellow holster, TL75 test leads, AC72 alligator test clips & Fluke 705 instruction sheet.
