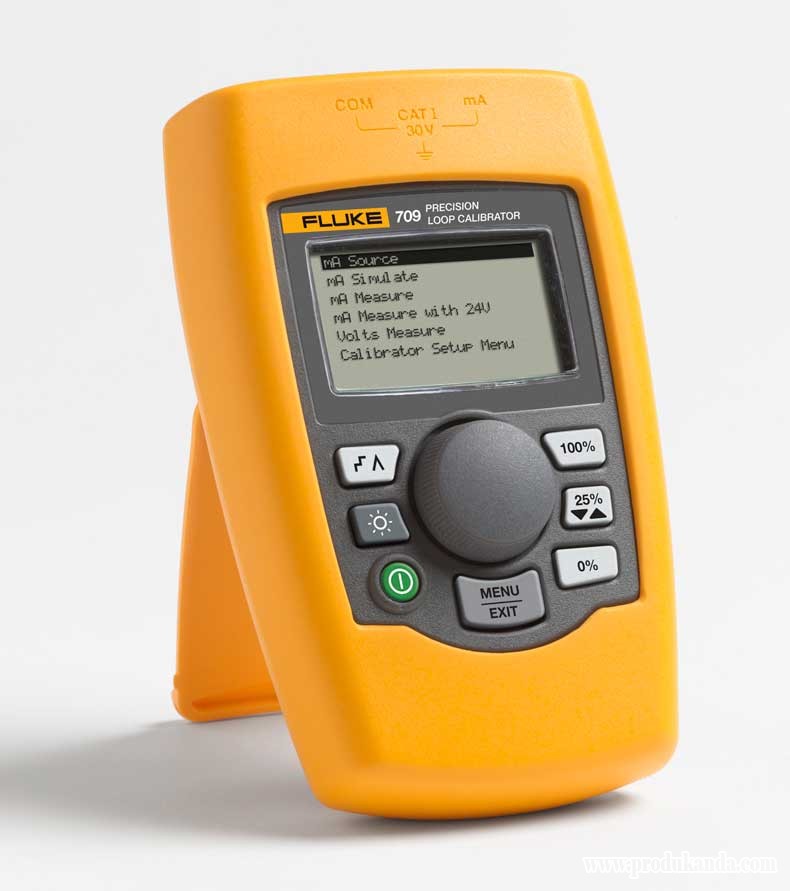

Fluke 709 Precision mA Loop Calibrator

A MORE POWERFUL ALTERNATIVE TO THE FLUKE 705 AND THE 707 mA LOOP CALIBRATORS

The Fluke 709 mA loop calibrator is designed to save time and produce high-quality results. This tool reduces the time it takes to measure, or source, voltage or current and power up a loop.

The Fluke 709 Precision Loop Calibrator is built around a user friendly interface with a Quick-Set rotary encoder knob. The protective holster easily fits into a technician’s hand and the large backlit display is easy to read, even in dark, cramped worked areas.

Fluke 709 mA Loop Calibrator Features

    Resolution: 1µA on mA ranges and 1mV on voltage range.

    Intuitive user interface with Quick-Set knob for fast setup, easy use.

    Built in selectable 250Ω resistor for HART communication.

    Simple two wire connection for all measurements.

    Auto Shutdown to conserve battery life.

    Functions: mA source, mA simulate, mA read, mA read/loop power, and volts read.

    Ranges: mA (0 to 24mA) and Volts (0 to 30VDC).

    Best-in-class accuracy at 0.01% reading.

    Display: 128 x 64 pixels, LCD Graphic w/backlight, .34 high digits.

    Power: 6 AAA alkaline.

    Battery Life: 40 hours typical.

    Over-Voltage Protection: 240 VAC.

    Overload Current Protection: 28 mA DC.

    EMC: EN61326 Annex A (Portable Instruments).

    Dimensions: 15 cm x 9 cm x 3 cm (6 x 3.6 x 1.3).

    Weight: 0.3 kg (9.5 ounces).

Alligator Clip Set, Stackable Lead Set, Test Probes, SureGrip Hook Clips, Soft Case, Six AAA batteries (installed), Fluke 709 Product Manual CD-ROM, Quick Reference Guide & Safety Information.
