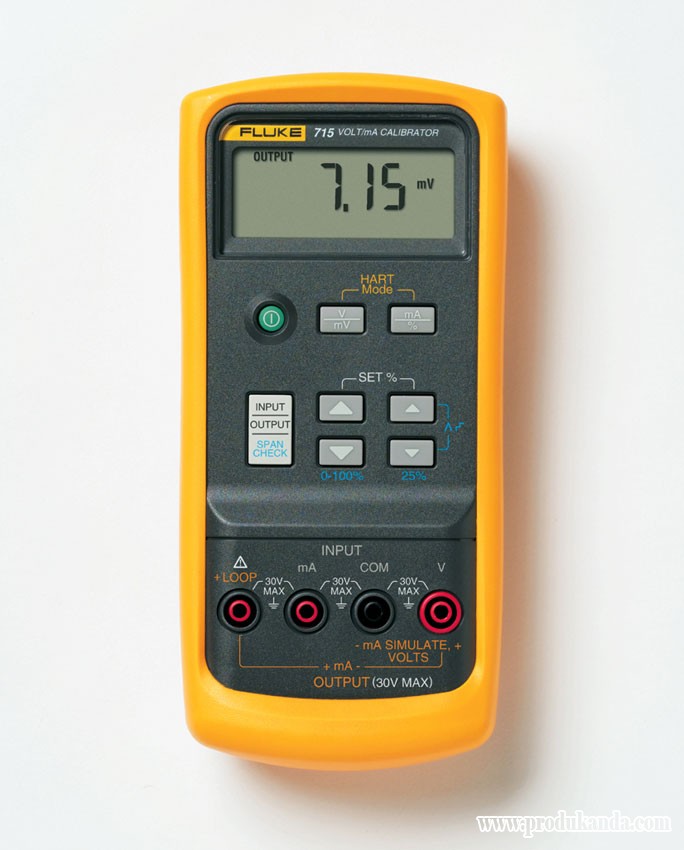

Fluke 715 Volt / mA Calibrator

OFFERED IN THE RUGGED FLUKE 80 SERIES DMM PACKAGE, THE 715 CALIBRATOR IS COMPACT, LIGHTWEIGHT AND EASY TO CARRY

The Fluke 715 Volt / mA Calibrator is a source and measurement tool for 0 to 24 mA current loop testing and dc voltage from 0 to 20/25 V. The calibrator does not source and measure simultaneously.

The Fluke 715 Volt / mA Calibrator delivers outstanding performance, durability and reliability. With a push button interface similar to the multifunction Fluke 740 Series Documenting Process Calibrators, the 715 is easy to use. It is EMI tolerant, dust and splash resistant, and features a removable battery door for quick battery changes.

Fluke 715 Volt/mA Calibrator Features

    Measure loop current (0-20 mA, 4-20 mA) signals.

    Measure voltage output process signals from PLCs, transmitters.

    Source or simulate 24 mA loop current.

    Source voltage to 100 mV or 10V.

    24V loop supply with simultaneous current measurement.

    Enhanced voltage and current measure and source accuracy.

    250 ohm HART resistor with loop power.

    Holster features test lead storage.

    Step and linear ramp output function.

    Configurable zero and span settings.

    Power requirements: Single 9V battery.

    Dimensions: 52 (H) x 98 (W) x 201 (L) mm.

    Weight: 601g (21.2 oz).

The Fluke 715 is supplied with a holster, a set of test leads, an installed 9V alkaline battery, and instruction sheet.
