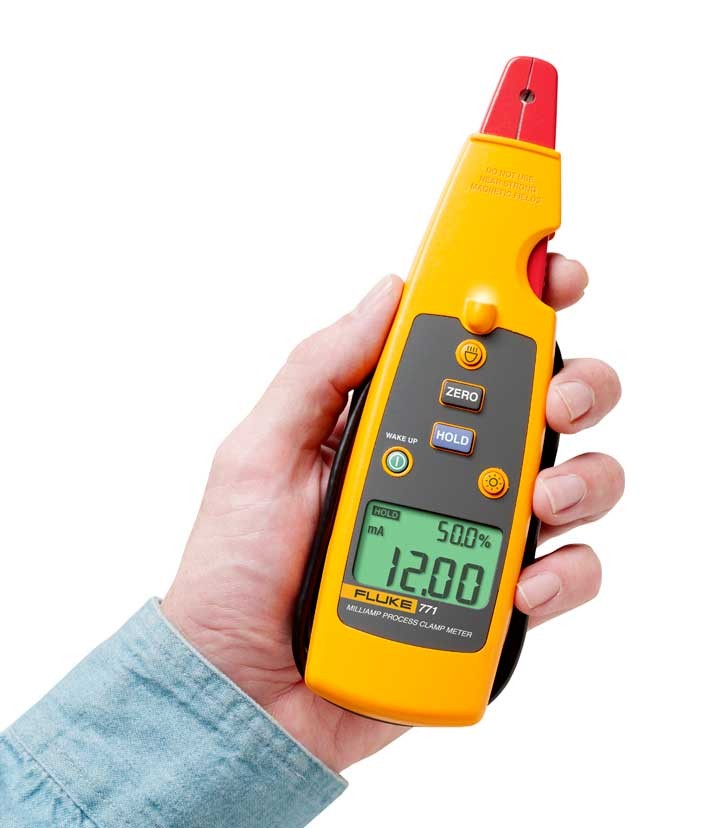

Fluke 771 Milliamp Process Clamp Meter

A HAND-HELD BATTERY-OPERATED CLAMP METER THAT MEASURES 4-20mA DC WITHOUT BREAKING THE ELECTRICAL CIRCUIT

If you need more time in your busy day take a good look at the Fluke 771 mA Clamp Meter. It’s designed to save you time, and money, by eliminating time wasting activities. With the Fluke 771 Milliamp Process Clamp Meter you can measure 4 to 20 mA output signals from transmitters in process and industrial control systems without breaking the current loop.

The Fluke 771 Milliamp Process Clamp Meter has all the accuracy, resolution and functionality you need for testing and troubleshooting programmable logic controllers and control system analog I/O.

The detachable clamp with extension cable allows you to take measurements in tight locations, and the built-in spot light illuminates hard to see wires in dark enclosures.

Fluke 771 Milliamp Process Clamp Meter Features

    Measure mA signal for PLC and control system analog I/O.

    Measure 4 to 20 mA output signals from transmitters.

    Best in class 0.2% accuracy.

    Resolution and sensitivity to 0.01 mA.

    Measure 10-50 mA signals in older control systems.

    Diameter of measurable conductor: 4.5mm max.

    Dual backlit display.

    Automatically change the 4 to 20mA output for remote testing.

    Detachable clamp with extension cable.

    Automatic power off after 15 minutes.

    Dimensions: (H x W x D): 212 x 59 x 38mm.
