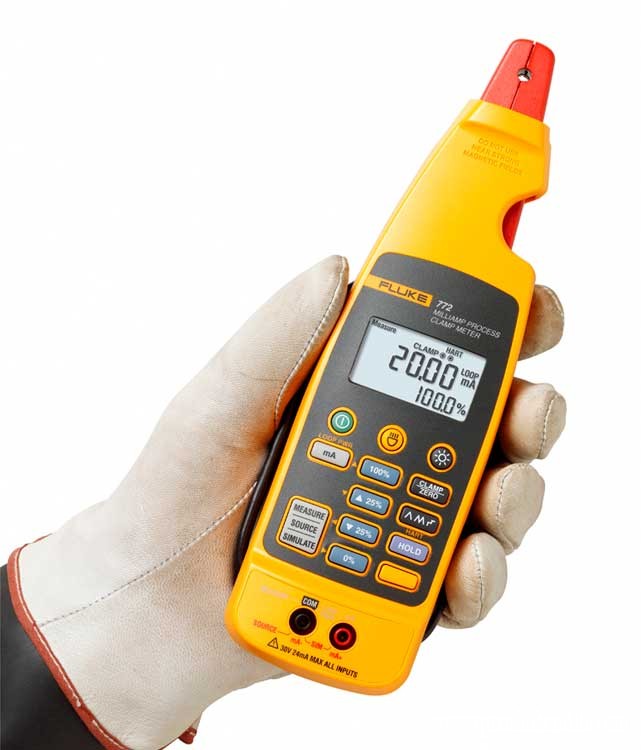

Fluke 772 Milliamp Clamp Meter
THE FLUKE 772 LETS YOU TROUBLESHOOT AND REPAIR 4-20 mA LOOPS WITHOUT BREAKING THE LOOP or BRINGING DOWN THE SYSTEM
The hand-held, battery-operated Fluke 772 Milliamp Process Clamp Meter can be used in troubleshooting transmitters, valves, PLC and DCS I/O. Unlike conventional clamp meters, the 772 features a remote jaw that is connected to the main body via extension cable. The detachable clamp with extension cable allows you to take measurements in tight locations, and the built-in spot light illuminates hard to see wires in dark enclosures.
The Fluke 772 deliver a comprehensive range of test and measurement capabilities. Now technicians in process plants, industrial plants, commercial buildings and automation commissioning teams can choose exactly the range of capabilities they need, at a price that makes sense.
Fluke 772 mA Clamp Meter Features
In-circuit measurement of 0-24 mA dc and up to 99.9 mA dc.
0-24 mA dc sourcing and simulating.
Loop power supply 24 V dc output.
Measure 10 to 50 mA signals in older control systems using the 99.9 mA range.
Automatically change the 4 to 20 mA output for remote testing.
Measure 4 to 20 mA signals with in-circuit measurement.
mA output linear ramp or 25% step output.
Detachable clamp with extension cable.
0.01 mA resolution and sensitivity.
Dimensions: 44 x 70 x 246mm.
Weight: 410g, (14.4 oz).
Soft carrying case, test leads, alligator clips, hanging strap and Fluke 772 user's manual.
