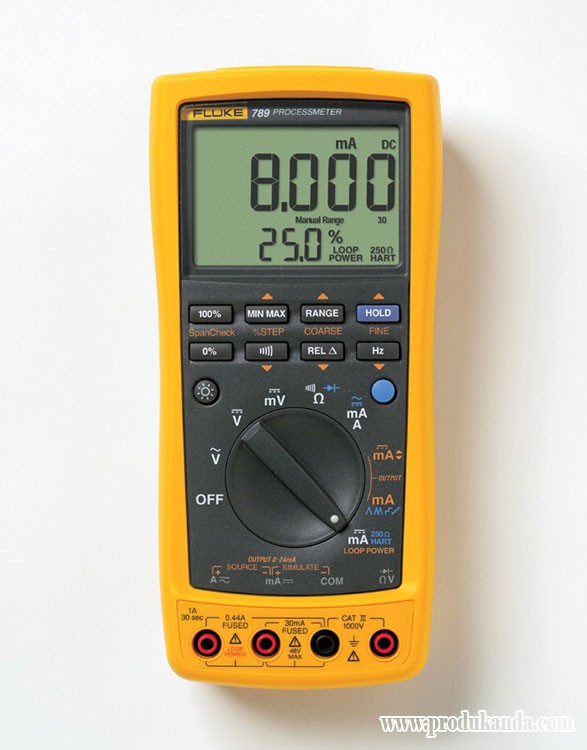

Fluke 789 Process Meter

THE FLUKE 789 PROCESSMETER LETS PROCESS TECHNICIANS DO A LOT MORE WHILE CARRYING A LOT LESS

The Fluke 789 Process Meter combines a DMM and a Loop Calibrator in one rugged, handheld tool, for about the price you would expect to pay for a loop calibrator alone, making it an ideal maintenance tool. The Fluke 789 also features an IR port which allows logged data to be transferred to the optional FlukeView forms software for graphic analysis and reporting.

The Fluke 789 has a 24-Volt loop supply reducing the need for taking a separate power supply when doing offline transmitter testing. And with its built-in, selectable 250-Ohm Hart resistor, it also eliminates the need to carry a separate resistor with you.

Fluke 789 Process Meter Features

    DMM and Loop Calibrator in one tool.

    Precision 1000V, 440 mA True RMS Digital Multimeter.

    DC current source and Loop Calibrator.

    24 V Loop power supply.

    Min/Max / Average / Hold / Relative Modes.

    Diode Test and Continuity Beeper.

    Manual Step (100%, 25%, Coarse, Fine) plus Auto Step & Auto Ramp.

    Simultaneous mA and % of scale read-out.

    Infrared I/O serial port.

    Dimensions: 203 x 100 x 50mm.

TL71 test lead set, AC72 alligator clips, batteries, Fluke 789 user manual & quick user guide.
