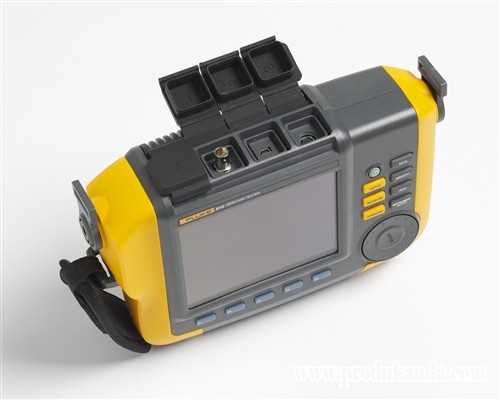

Fluke 810 Vibration Tester
DIAGNOSE COMMON MECHANICAL PROBLEMS AND PRIORITISE REPAIR ACTIONS IN THREE SIMPLE STEPS
The Fluke 810 Vibration Tester is the most advanced troubleshooting tool for mechanical maintenance teams who need an answer now. The unique diagnostic technology helps you quickly identify and prioritize mechanical problems, putting the expertise of a vibration analyst in your hands.
Use a simple step-by-step process to report on machine faults the first time measurements are taken, without prior measurement history. The combination of diagnoses, severity and repair recommendations help you make informed maintenance decisions and address critical problems first.
Fluke 810 Vibration Tester Features
Diagnostics: Unbalance, looseness, misalignment and bearing failures.
Fault severity scale with four severity levels.
Machine rotational speed range: 200 rpm to 12000 rpm.
Display: VGA, 320 x 240 Colour (5.7 inch diagonal) TFT LCD with LED backlight.
Memory: SD micro memory card, 2 GB internal + slot for additional storage.
Repair recommendations.
On-board context sensitive help.
2 GB expandable on-board memory.
Self-test function.
Laser tachometer for accurate machine running speed.
Tri-axial accelerometer.
Viewer PC Software: expands data storage and tracking capacity.
Safety: IEC 61010-1 CAT III 600V.
Dimensions: 18.56 x 7.00 x 26.72cm (7.30 x 2.76 x 10.52 in).
Weight: 1.9kg (4.2lb).
Tri-axial accelerometer, magnet mount, mounting pad kit with adhesive, accelerometer, quick-disconnect cable, Laser tachometer and storage pouch, Smart battery pack with cable and adapters, Shoulder strap and adjustable hand strap, Viewer PC software, Mini USB to USB cable, Fluke 810 Getting Started Guide, illustrated quick reference guide, Users Manual CD-ROM & carrying case.
