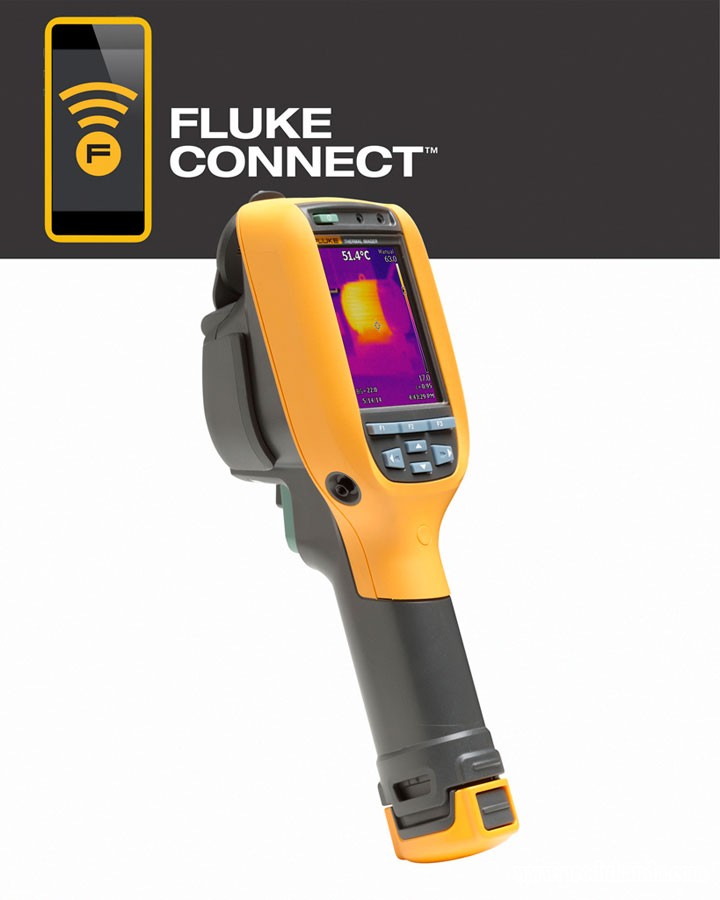

Fluke Ti90 General Purpose Thermal Imager

WIRELESSLY INTERFACES WITH OTHER FLUKE CONNECT CERTIFIED TESTING TOOLS, PC AND EVEN YOUR OWN SMARTPHONE

The Fluke FLK-Ti90 9HZ Infrared camera offers best-in-class spatial resolution and field of view. They come standard with Fluke Connect, the world's largest system of test and measurement tools, and are the only wireless industrial infrared cameras in their price class.

The Ti90 features a spatial resolution of 5.6 mRads and gets superior quality images so you can conduct an infrared inspection from a safe distance with up to 84% better spatial resolution than other competitive models. IR-Fusion AutoBlend and Picture-in-Picture modes are available in SmartView software, so that you can perform all of your analysis and image adjustments and enhancements with the included SmartView software. The FLK-Ti-90-9HZ has a large 3.5 inch LCD screen. A screen size up to 32% larger screen than other competitive models lets you clearly see what you are measuring.

Fluke Ti90 Thermal Imager Features

    Rugged, lightweight, point-and-shoot thermal imager.

    IFOV (spatial resolution): 5.6 mRad.

    Resolution: 80 x 60 (4,800 pixels).

    Field of view: 19.5° H x 26° V.

    Temperature Range: -20°C to +250°C.

    Wireless connectivity: Yes.

    Ruggedised display: 3.5 inch diagonal (portrait format).

    Focus system: Fixed focus 46 cm (18 in) and beyond.

    Built-in digital camera (visible light): 2 megapixel industrial performance.

    Frame rate: 9Hz only.

    SD memory system: Removable 4 GB SD memory card.

    Batteries: Field-replaceable, rechargeable.

    Battery life: Four+ hours continuous use per battery pack .

    AC operation: With included power supply (110V to 220V AC, 50/60 Hz).

    Enclosure rating: IP54.

    Dimensions: (H x W x L) 28.4 x 8.6 x 13.5cm (11.2 x 3.4 x 5.3 in).

    Weight (battery included): 0.726 kg (1.6 lb).

AC power adapter, Lithium ion smart battery (1), USB cable, SD memory card, Fluke Connect™ wireless SD Card, Soft transport bag, Ti90 Printed users’ manual in English, Spanish, French, German and Simplified Chinese, all other manuals on CD, SmartView software, Warranty registration card.
