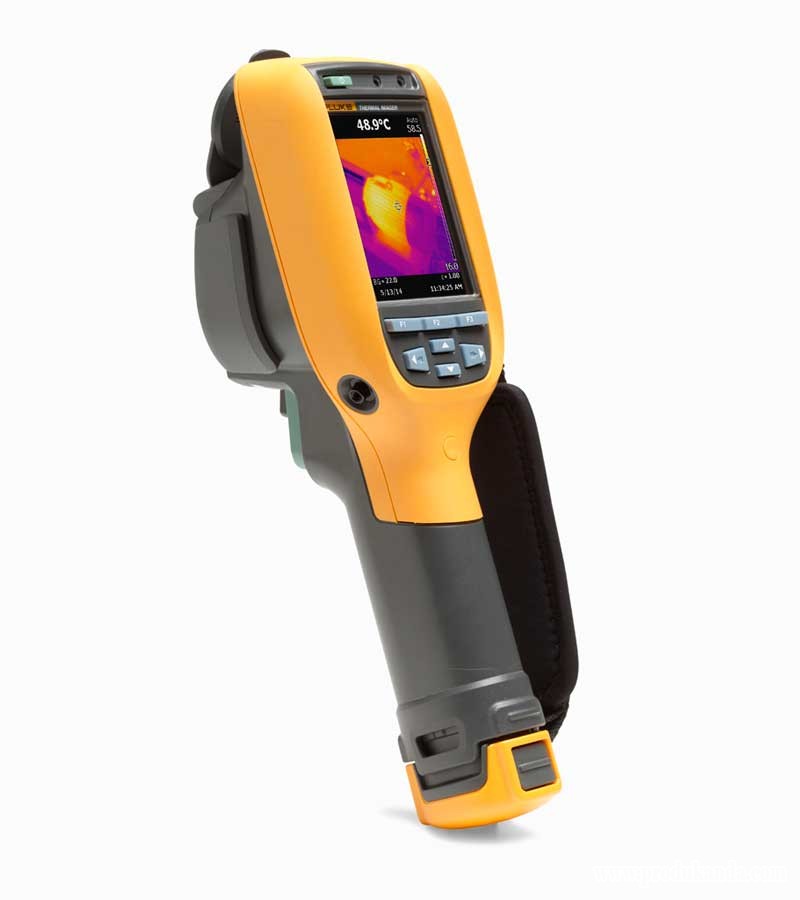

Fluke Ti95 General Purpose Thermal Imager
WIRELESS WITH SUPERIOR IMAGE QUALITY, EASY-TO-USE AND RUGGED, THE Ti95 THERMAL IMAGER WAS DESIGNED FOR YOUR NEXT THERMAL INSPECTION
The Fluke FLK-Ti95 9HZ Infrared camera offers best-in-class spatial resolution and field of view. They come standard with Fluke Connect, the world's largest system of test and measurement tools, and are the only wireless industrial infrared cameras in their price class.
The Ti95 features a spatial resolution of 5.6 mRads and gets superior quality images so you can conduct an infrared inspection from a safe distance with up to 84% better spatial resolution than other competitive models. IR-Fusion AutoBlend and Picture-in-Picture modes are available in SmartView software, so that you can perform all of your analysis and image adjustments and enhancements with the included SmartView software. The FLK-Ti-95-9HZ has a large 3.5 inch LCD screen. A screen size up to 32% larger screen than other competitive models lets you clearly see what you are measuring.
Fluke Ti95 Thermal Imager Features
Rugged, lightweight, point-and-shoot thermal imager.
IFOV (spatial resolution): 5.6 mRad.
Resolution: 80x80 (6,400 pixels).
Field of view: 26° H x 26° V.
Temperature Range: -20°C to +250°C.
Wireless connectivity: Yes.
Ruggedised display: 3.5 inch diagonal (portrait format).
Focus system: Fixed focus 46 cm (18 in) and beyond.
Built-in digital camera (visible light): 2 megapixel industrial performance.
Frame rate: 9Hz only.
SD memory system: Removable 4 GB SD memory card.
Batteries: Field-replaceable, rechargeable.
Battery life: Four+ hours continuous use per battery pack.
AC operation: With included power supply (110V to 220V AC, 50/60 Hz).
Enclosure rating: IP54.
Dimensions: (H x W x L) 28.4 x 8.6 x 13.5cm (11.2 x 3.4 x 5.3 in).
Weight (battery included): 0.726 kg (1.6 lb).
AC power adapter, Lithium ion smart battery (1), USB cable, SD memory card, Fluke Connect wireless SD Card (where available, shipped separately in non-European countries), Soft transport bag, Adjustable hand strap (left- or right-handed use), Printed users' manual in English, Spanish, French, German and Simplified Chinese, all other manuals on CD, SmartView software & Ti95 Warranty registration card
