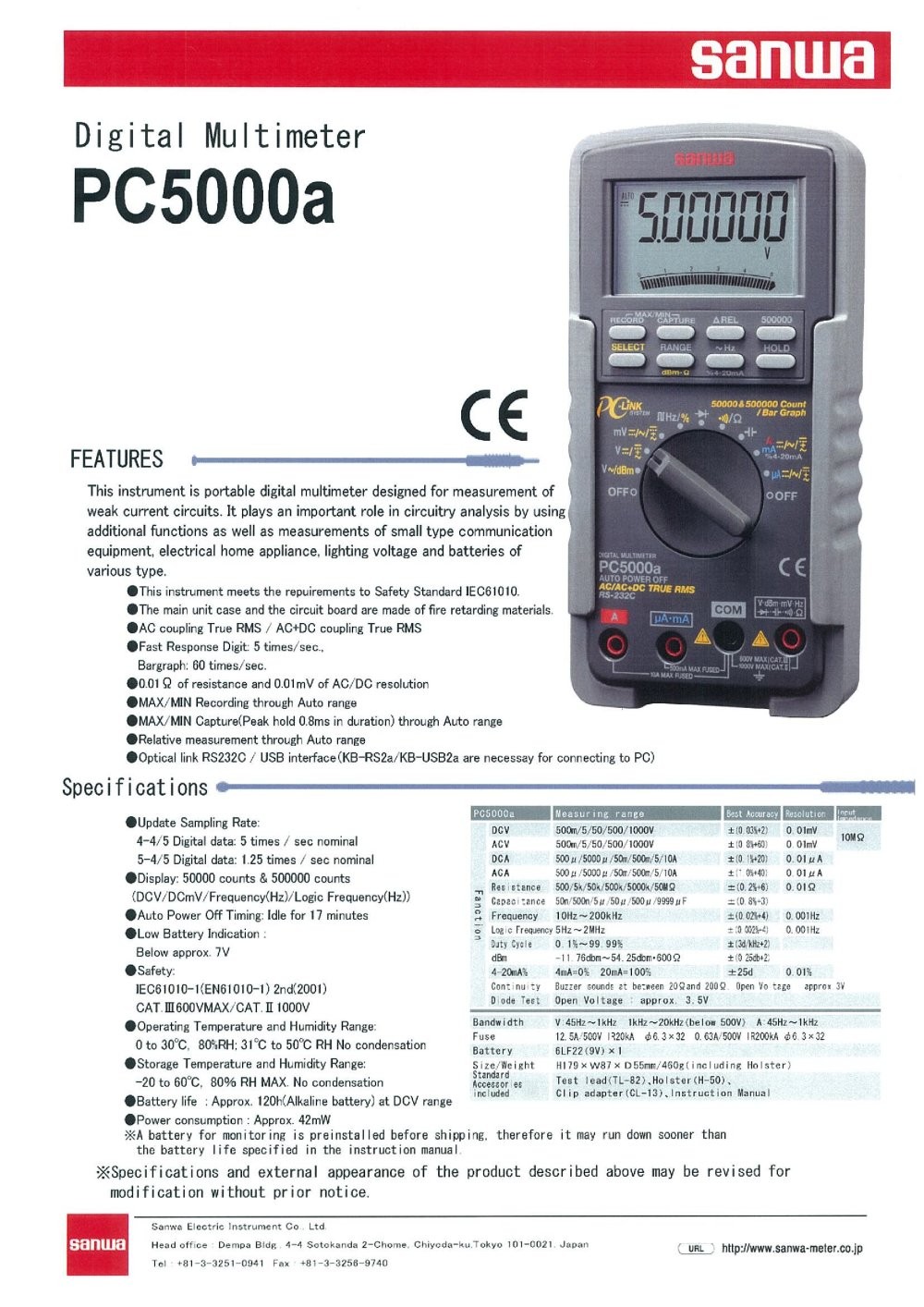

Sanwa PC5000a Digital Multimeter
Basic Features
4-4 / 5 digits 50000 count
Selectable 5-4 / 5 digits 500000 count for DCV & Hz
Selectable 5-4 / 5 digits 500000 count for DCV & Hz
0.03% best accuracy
AC / AC + DC True RMS
Fast speed bar graph
Capacitance measurement (5000 count)
Not suitable for measuring condensers with large leak current
Not suitable for measuring condensers with large leak current
4-20mA% measurement
dBm 20 selectable reference impedance
Line frequency (AC sine wave) measurement
Logic frequency measurement
Duty cycle measurement
Capture (peak hold) 0.8ms in duration
MAX, MIN, MAX-MIN recording mode
Peak hold
Data hold, Range hold
Relative value
Auto power off (17min.) (cancelable)
Alarm for improper test lead insertion to current terminal
Alarm for improper test lead insertion to current terminal
Protective holster with wall hanger and lead holder
Tilt stand
Optical link RS232C / USB interface (optional)
