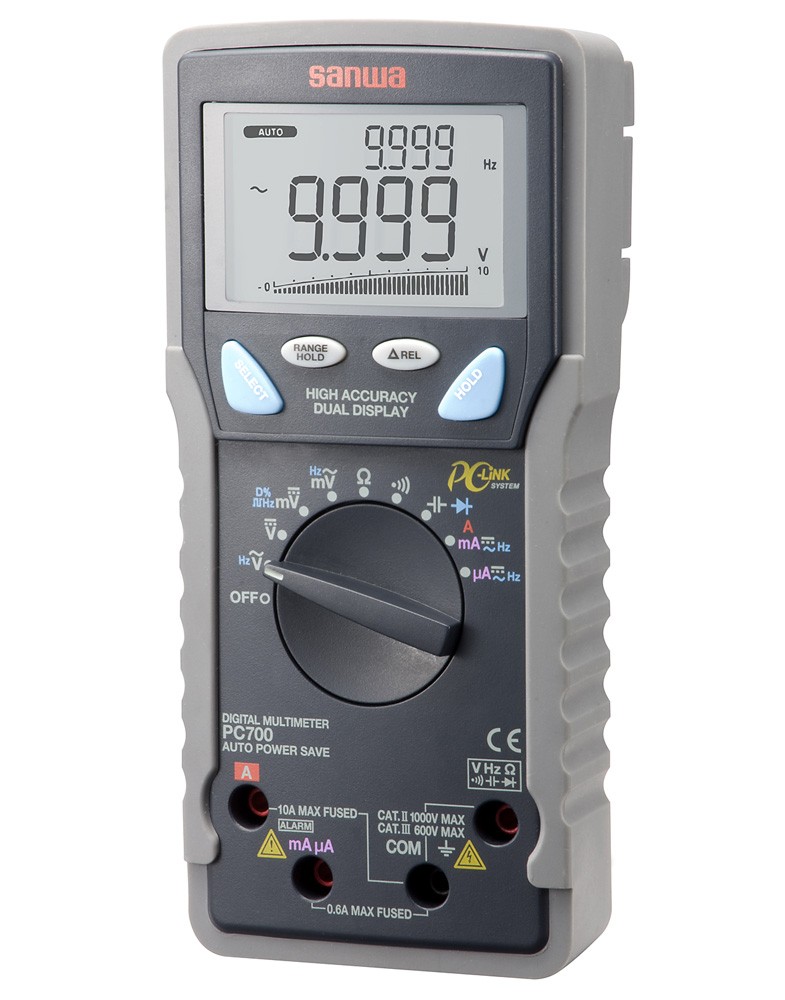

Sanwa PC700 Digital Multimeter
Basic Features
■4 digits 9999 count & 3-5/6 digits 6000count
■Maximum DC/AC voltage measurement resolution 0.01mV
■Dual Display shows voltage/current and its frequency, and
AC components and DC components of voltage/current
■High speed bar graph
■Frequency measurement (AC sine wave only)
■Logic frequency measurement, duty cycle measurement
■Data hold, Range hold
■Relative value
■Auto power saving mode (30min.) (cancelable)
■Optical Link USB interface (optional)
Display : numeral display 9999 & 6000, bar graph 41 segments
Sampling rate : 5 times/sec., 60 times/sec. for bar graph
Battery life : Approx. 60h (manganese battery) at DCV range
