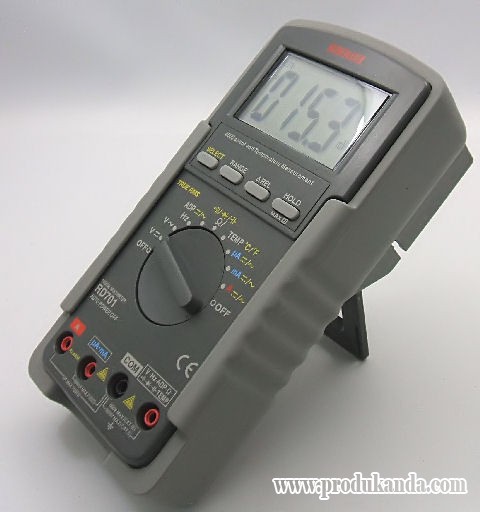

Sanwa RD701 Digital Multimeter
Basic Features :
■3-3 / 4 digits 4000 count
■0.3% best accuracy
■AC True RMS ※RD701 only
■AC True RMS ※RD701 only
■Capacitance measurement
※Not suitable for measurement of condensers with large leak current.
■K type temperature
※Optional accessory K-AD is necessary.
※K type temp. sensor K-250PC is included as a standard accessory
■Frequency measurement
※Input voltage : 20VACrms and under
※Input signal : sign wave or square wave with 40%-70% duty
※Input sensitivity : 10Hz〜20kHz/0.9Vrms and above
: 20kHz〜500kHz/2.6Vp or 1.9Vrms and above
: 500kHz〜1MHz/4.2Vp or 3Vrms and above
■ADP function (for current sensor)
■Max recording measurement
■Data hold / Range hold ■Relative value
■Auto power off (30min.) (cancelable)
■Alarm for improper test lead insertion to current terminal
■Protective holster with wall hanger and lead holder
■Tilt stand
Display : numeral display 4000 (Hz : 9999, capacitance :5000)
Sampling rate : 3 times / sec. (Hz : 2 times / sec.)
AC frequency bandwidth : 50〜500Hz
